AC Pad Lock Door Safety Main Switch Installation 3 Phase LW30 63A Isolator Disconnect Cam Switch Product Rotary Switches

Max. Voltage : 440V

Whether The Smart : No

Type : Main Switch

Position : 2 Positions

MOQ : 1000 pieces

Price : $8 / piece

Rotation Range : 90

Material : Metal, Copper, Silver, ABS+Brass+silver contact

Terminal Type : Screw Terminal

Max. Current : 32A

IP level : IP53

Application : Industrial Control, Electric Equipment, Circuit Control, Control Switch

Rated Current : 20A/25A/32A/40A/63A/80A/100A

Transform angle : 90°

Place of Origin : Zhejiang, China

Product Name : Isolator Switch

Mechanical Life : 0.1*10^6

Model Number : LW30-63/3

Function : Circuit Control

Number Of Poles : 3

Certification : CE,TUV

Brand Name : MEH

Contact Now

LW30 series Rotary Isolator Switch

Product Description

LW30 series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”

Product Description:

LW30 series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
LW30 Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
LW30 series Rotary Isolator switch have six current ratings: 20A,25A,32A,40A,63A,80A,100A
LW30 series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
LW30 series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.

General Features:

Wide range of function for switching, it has 20A,25A,32A,40A,63A,80A,100A
Capability for switching of resistive, or inductive, or mixed loads.
The most economical way for switching electrical loads.
Made of the best materials with high mechanical, electrical and thermal resistance.
Double-break bimetallic contacts made of silver alloy and Copper
20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).

Advantage:

LW30 series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
LW30 series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…

Technical parameters:

Description

LW30-25(20)

LW30-32

LW30-40

LW30-63

LW30-80

Rated thermal current

ITH

25(20)

Rated working voltage

240

440

240

440

240

440

240

440

240

440

Ie/Pe

AC-21A

A/KW

20/-

32/-

40/-

63/-

80/-

AC-22A

A/KW

20/-

32/-

40/-

63/-

80/-

AC-23A

A/KW

15/4

15/7.5

22/5.5

22/11

30/7.5

30/15

43/11

43/22

57/18.5

57/30

AC-3

A/KW

11.7/3

11.7/5.5

15/4

15/7.5

22/7.5

22/11

36/11

36/18.5

43/15

57/30

Dimensions and installation dimensions:

Description	Dimensions(mm)					Installation(mm)
Description	A	B	C	K	L	E	F	D1	D2
LW30-20	64	42	54	13.5	61	48	48	Φ10	Φ4.2
LW30-25	64	42	54	13.5	61	48	48	Φ10	Φ4.2
LW30-32	64	42	54	13.5	61	48	48	Φ10	Φ4.2
LW30-40	64	50	64	16	67	48	48	Φ10	Φ4.2
LW30-63	64	50	64	16	67	48	48	Φ10	Φ4.2
LW30-80	64	70	80	22.5	82	48	48	Φ10	Φ4.2
LW30-100	64	70	80	22.5	82	48	48	Φ10	Φ4.2

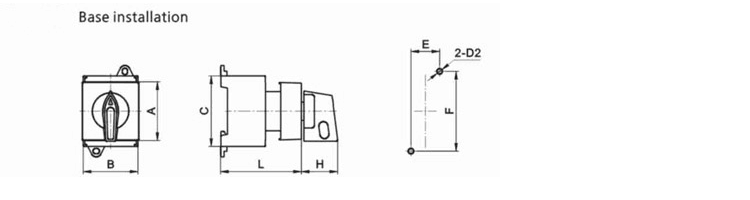

Description	Dimensions(mm)					Installation(mm)
Description	A	B	C	L	H	E	F	D2
LW30-20	45	42	54	50	26	22	60	Φ4.2
LW30-25	45	42	54	50	26	22	60	Φ4.2
LW30-32	45	42	54	50	26	22	60	Φ4.2

Normal working conditions:

Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
Working height: ≤2,000m
Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)

Classification

1. Classified by utilization, control and load switch.
Main switch Control switch

2. Classified by Usages
AC-23A AC-3

Classified by Protection level

Without Water-proof box:IP2L0 With Water-proof box:IP65
